LP-240-5 Twist lock 5 pin Photocell

MOQ ：1 piece

Lead Time ：7 Days

Inquiry Start Order

Seller Support : Trade Authenticity Guaranteed & Accepting

Payment : L/C，T/T，Western Union, Money Gram, Credit Card, Paypal

Product details

Product Specifications

Brand name：LIPU

Product Description

Ambient Temp:-40℃~+70℃

Related Humidity:99%

Weight Approx:100g

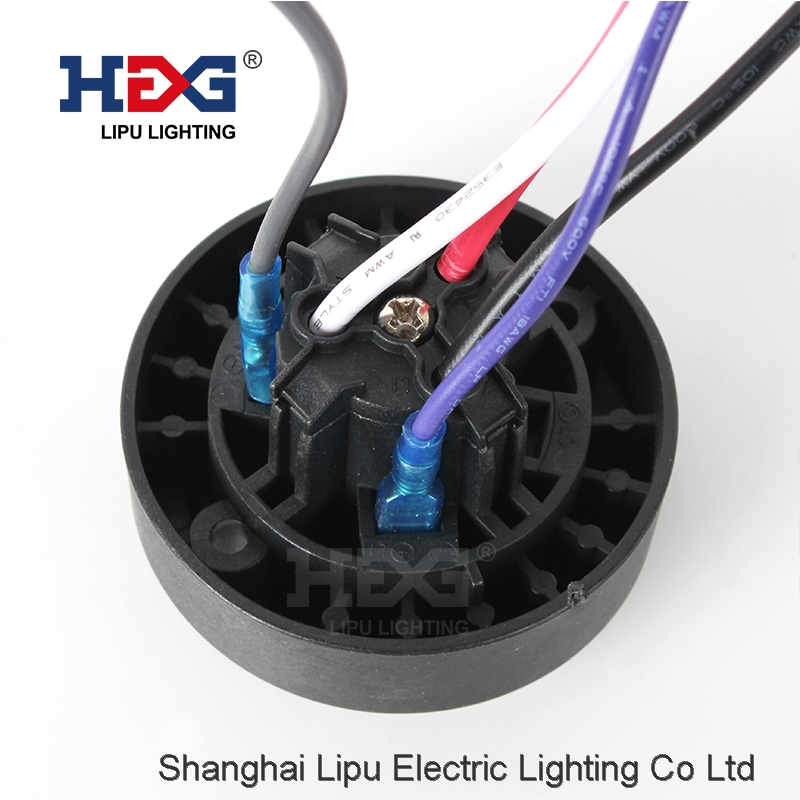

Twist lock 5 pin Photocell Lamp Luminaires Socket

Model No.	LP-240-5
Product Size(mm)	65（Dia）*40
Applicable Volt Range	0-480VAC
Rated Frequency	50/60Hz
Power Loading	AWG#14: 15 Amp max. / AWG#16: 10 Amp max.
Leads	6” Min.（See Ordering Information）
Ambient Temp	-40℃ ~+70℃
Related Humidity	0.99
IP waterproof	IP65
Weight Approx	120g
Packing	100pcs/Carton
Carton Size	43x43x30cm
G.W.	14KGS
N.W.	12KGS

Installation & Operational Instructions

Disconnect power; wire the receptacle according to the diagram below. An arrow indicating NORTH on the top of the receptacle is used to assist correct direction. Push the photo control on and turn it clockwise to lock into the receptacle.
